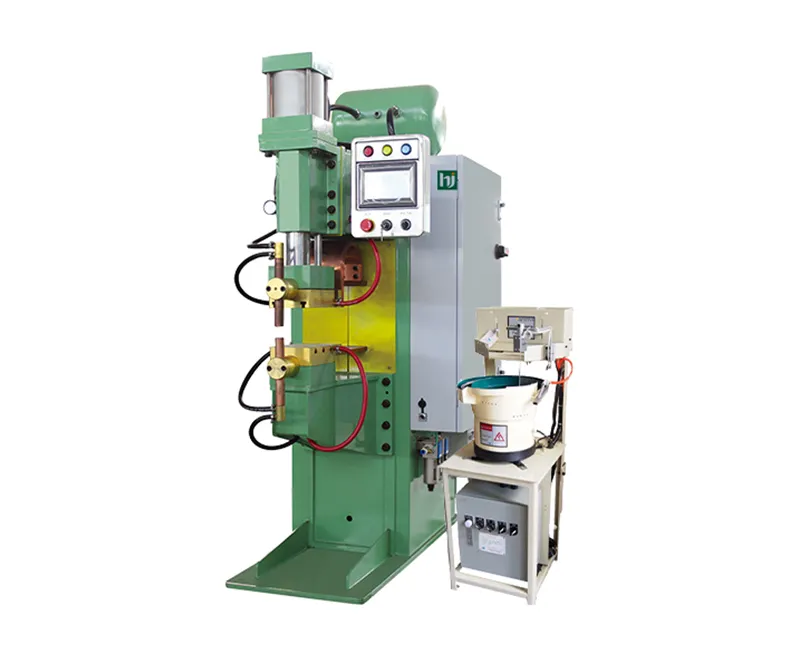

Nut Spot Welding Machine

Components of a single set of nut/bolt conveyor: 1) Vibrating base 2) Nut sorting disc (with anti-reverse device) 3) Frame 4) Storage tray 5) PLC controller 6) Conveyor gun (slide rod type) 7) Conveyor hose 8) Pressure reducing valve, solenoid valve 9) Proximity sensor 10) Control cable 12) Installation bracket

The principle of the capacitor energy storage type point convex welding machine is to charge and store energy in a group of high-capacity capacitors through a smaller transformer beforehand

This multi-head gantry spot welder is designed for welding reinforcement ribs on various sheet metal parts.

Infrared non-contact temperature measurement, precise and with a range of 300-1200°C. This product is a subsidiary of the Chinese Academy of Sciences in Beijing.

Seam welding machines are used for seam welding. Seam welding, also known as girth welding, uses a pair of roller electrodes instead of the cylindrical electrodes used in spot welding.

Choosing between a spot welder and a traditional welding machine (primarily arc welding equipment) isn't a simple "one or the other" decision; it's a comprehensive decision based on your product design, production needs, and process requirements.

Spot welding machines and traditional welding machines (usually arc welding machines, such as manual arc welding, argon arc welding, and carbon dioxide shielded welding) have fundamental differences in principles, applications, and operations.

Power Supply	AC220V/380V 50Hz
Input power	0.35KVA
Working Capacity	Standard four-corner nuts : 40 - 60 per minute. Hexagonal or non-standard nuts : 20-30 per minute.
Suitable nut size	M5,6,8,10,12,7/16
Transporting range	150mm /200mm
Diameter of the vibrating disc	250mm
Overall dimension	5003501060
Transporting pipe length	Standard 2m
Compressor air pressure	2.5-4kg.f/cm2
Error resolution	1/10000

Name	Configuration	Brand	Qty.
Controller	PLC	OMRON	1 pc
	Button	IDEC	1 pc
	Power Switch	Taiwan	1 pc
	Control box	Customized	1 pc
Sorting tray	Customized		1 pc
Base for vibration disc	Customized		1 pc
Pressure reducing valve, solenoid valve	CKD		2 PCS
Transporting gun cylinder and inductor	CKD		1 set
Proximity sensor	OMRON		1 set
